ImageList

An Image List is a collection of bitmat or icon images which can be applied to LISTVIEW, TOOLBAR, and TREEVIEW objects. For example, you attach an image list to a ToolBar and assign images to the buttons in that toolbar.

Default Image List

PLBWIN provides a standard default image list that can be used if you don't want to build your own list. The last time we looked, that list contains 71 images (shown below).

STANDARD IMAGELIST BITMAPS PROVIDED BY PLBWIN

Custom Image List

To build your own image list, first create the image list object then populate it with images and icons via the AddBmp and AddIcon methods. Images can be actual image files or they can be RESOURCES.

MY_ImgList      IMAGELIST
MonkeyIndex     FORM    3    //Index number of monkey in image list
Icon10131Index  FORM    3    //Index number of Icon 10131 in image list
Icon10132Index  FORM    3    //Index number of Icon 10132 in image list

      CREATE   MY_ImageList,ImageSizeH=16,ImageSizeV=16
      My_ImageList.AddIcon  Giving MonkeyIndex    Using *Icon=Monkey.ICO
      My_ImageList.AddIcon  Giving Icon10131Index Using *Icon=10131
      My_ImageList.AddIcon  Giving Icon10132Index Using *Icon=10132

In the above example, icons are added to the image list. You can't control the number of the element within the image list. Essentially they're added in the order that you do them. In the example abouve, Monkey is #1, Icon 10131 is #2, Icon 10132 is #3.

Combining Default and Custom Image Lists

If you want both your own icons AND the ones that are provided by PLBWIN, you can do that with the following procedure.

1. In the forms designer, use TOOLS/RESOURCES to add icons to the PLFORM's resources.
2. At runtime, in your program:
   1. Do the FORMLOAD to have the resources available.
   2. Create your own image list object.
   3. Use the LoadStdToolBitMap method to load the standard icons into that list.
   4. Use the AddIcon method to add your own icons to the list.
      The standard list had 71 icons last time we looked. The icons you add will follow those and become 72, 73, etc.

Modifying the example above to combine lists you'd do this:

MY_ImgList      IMAGELIST
MonkeyIndex     FORM    3    //Index number of monkey in image list
Icon10131Index  FORM    3    //Index number of Icon 10131 in image list
Icon10132Index  FORM    3    //Index number of Icon 10132 in image list

      CREATE   MY_ImageList,ImageSizeH=16,ImageSizeV=16
      My_ImageList.LoadStdToolBitMap     //load stanard images to list
      My_ImageList.AddIcon  Giving MonkeyIndex    Using *Icon=Monkey.ICO
      My_ImageList.AddIcon  Giving Icon10131Index Using *Icon=10131
      My_ImageList.AddIcon  Giving Icon10132Index Using *Icon=10132

Now we find that Monkey is #72, Icon 10131 is #73, Icon 10132 is #74.

Note that it's important to use the Giving clause to recover the actual index number of your icons. If you just expect them to be 72, 73, and 74, then Sunbelt someday adds more icons to the default list, your program will break because your icons are farther down the list.

The Benefit of Resources

The problem with adding icons one at a time is that those icon files must be available at runtime. If our case, we're distributing programs to users and don't really want to also be distributing a bunch of icons.

But there is a solution: The designer lets you add images and icons to a "resource" object that becomes part of the PLFORM. When you add icons to the image list by number, these come from your resources for the form! (See the discussion of this in article 620.)

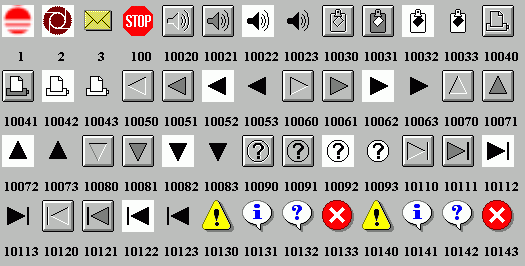

Image numbers provided by PLBWIN Note that numbers 1,2,3 were created as RESOURCES in the Designer Display created by UTIL-PLB\RESOURCE.PLS

See also:

• IMAGE LISTS.
• RESOURCES.
• ICONS where resources are used.
• BUTTONS where resources are used.
• Tool Bars where an image list is used.
• ICON/RESOURCE summary.

---
